Z80/Z80A/Z80B Family



Z8400APS






  Frequency: 4 MHz
  Bus: 4 MHz
  Package: PDIP-40
  Technology: ?
  Year: mfg. 1984

Top

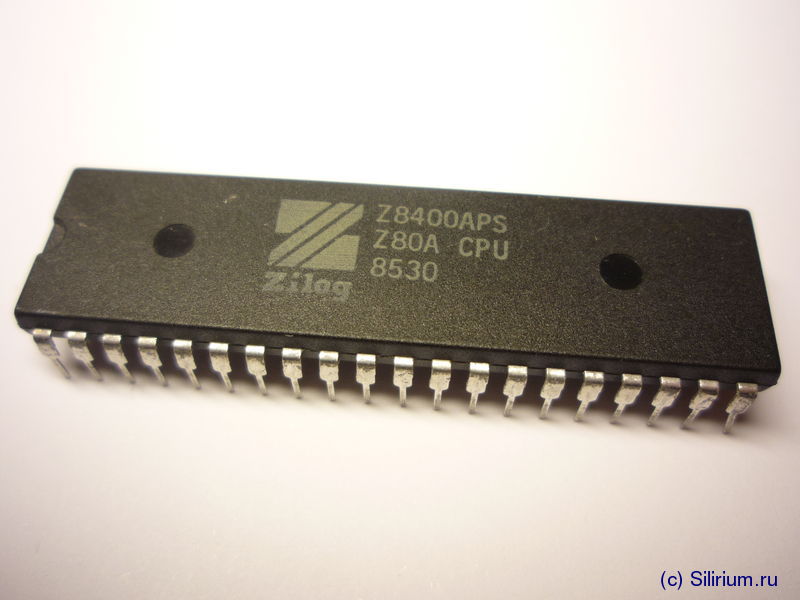

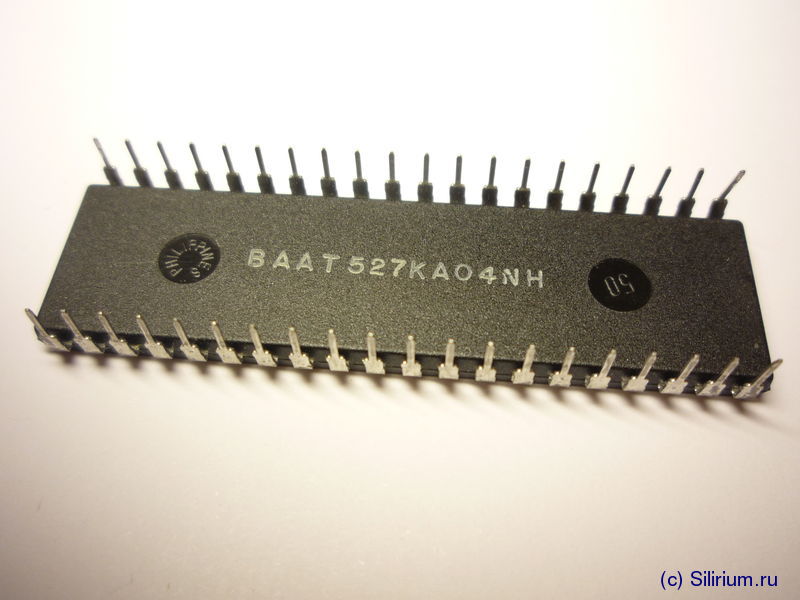

Z8400APS Diff Print






  Frequency: 4 MHz
  Bus: 4 MHz
  Package: PDIP-40
  Technology: ?
  Year: mfg. 1985

Top

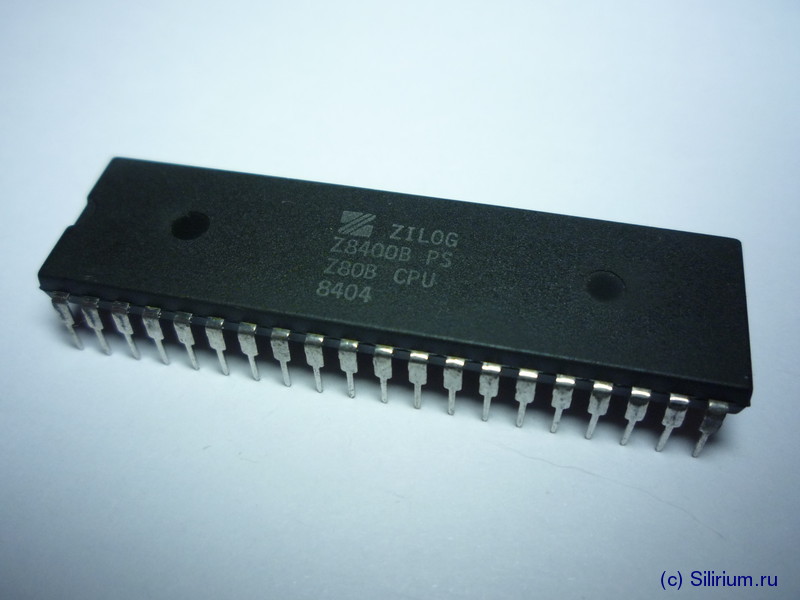

Z8400BPS






  Frequency: 6 MHz
  Bus: 6 MHz
  Package: PDIP-40
  Technology: ?
  Year: 1984

Top

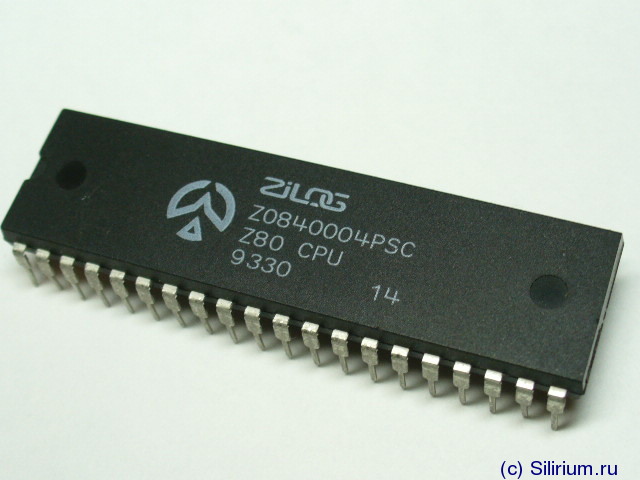

Z0840004PSC






  Frequency: 4 MHz
  Bus: 4 MHz
  Package: PDIP-40
  Technology: ?
  Year: 1990

Top

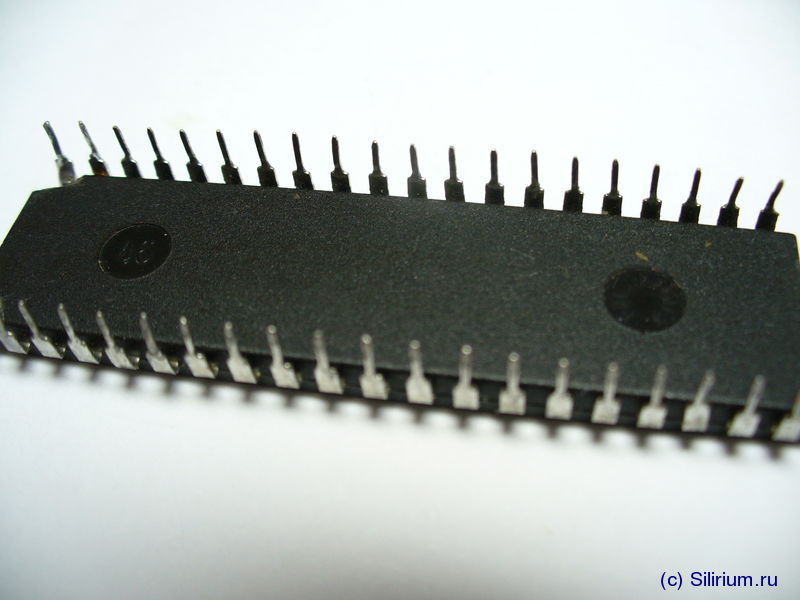

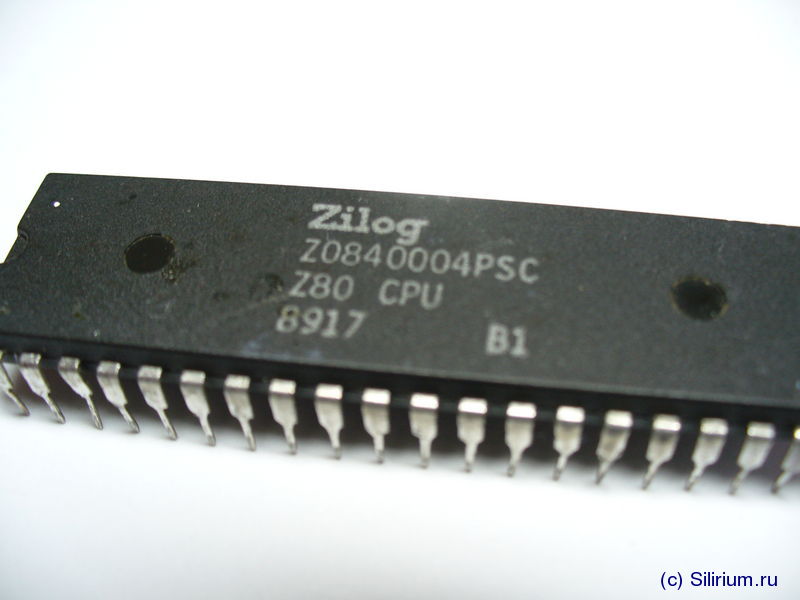

Z0840004PSC Diff Print






  Frequency: 4 MHz
  Bus: 4 MHz
  Package: PDIP-40
  Technology: ?
  Year: 1989

Top

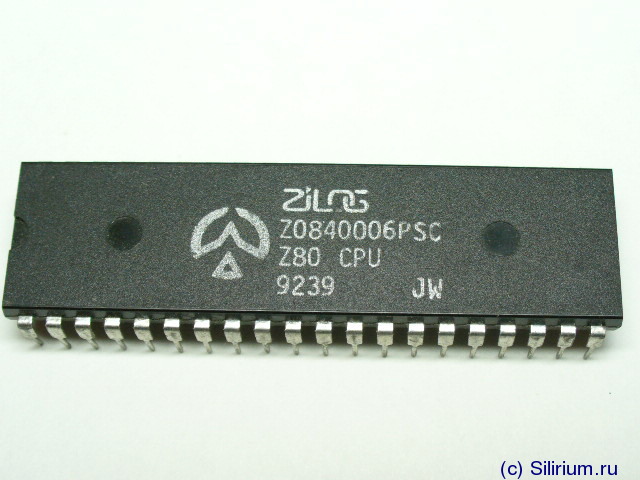

Z0840006PSC






  Frequency: 6 MHz
  Bus: 6 MHz
  Package: PDIP-40
  Technology: ?
  Year: 1990

Top

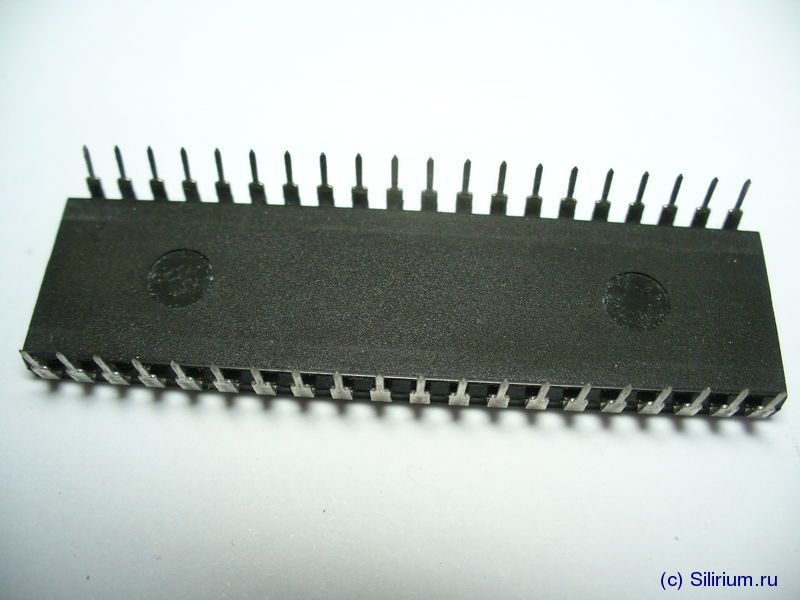

Z0840008PSC






  Frequency: 8 MHz
  Bus: 8 MHz
  Package: PDIP-40
  Technology: ?
  Year: mfg. 2000

Top

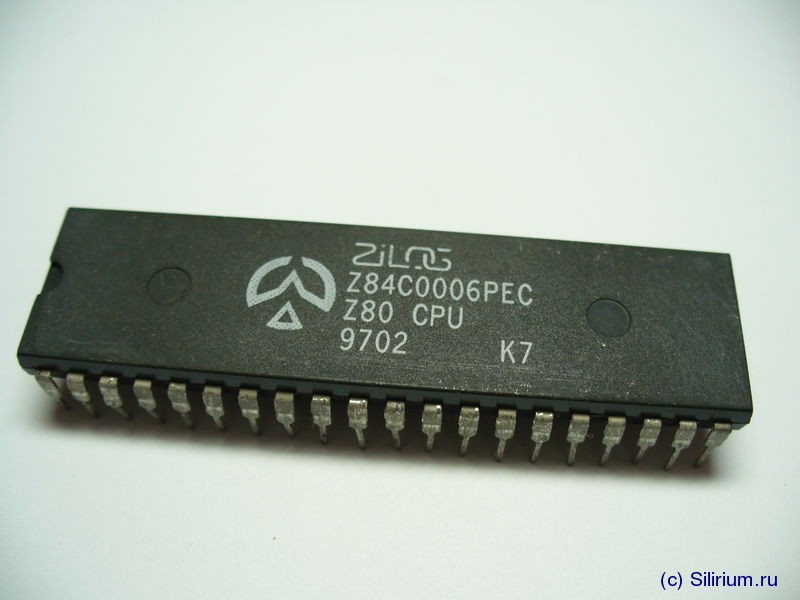

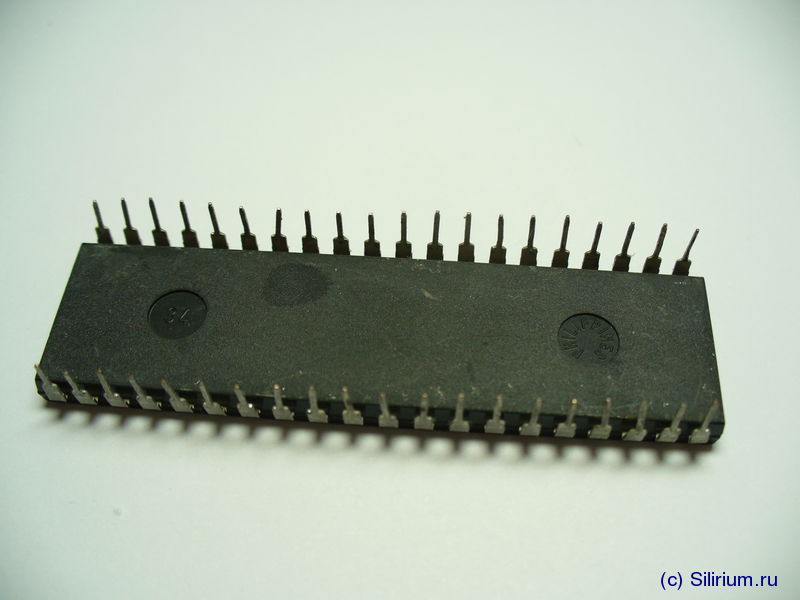

Z84C0006PEC






  Frequency: 6 MHz
  Bus: 6 MHz
  Package: PDIP-40
  Technology: ?
  Year: mfg. 1997

Top

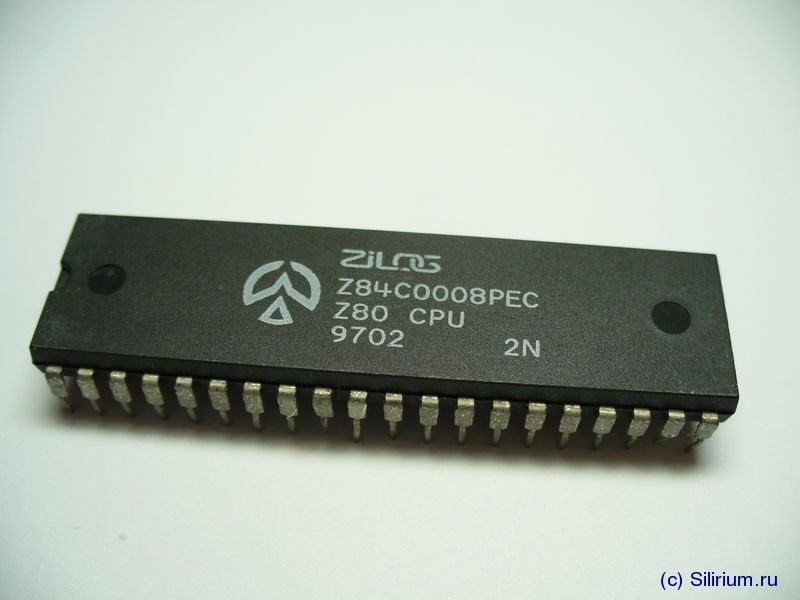

Z84C0008PEC






  Frequency: 8 MHz
  Bus: 8 MHz
  Package: PDIP-40
  Technology: ?
  Year: mfg. 1997

Top

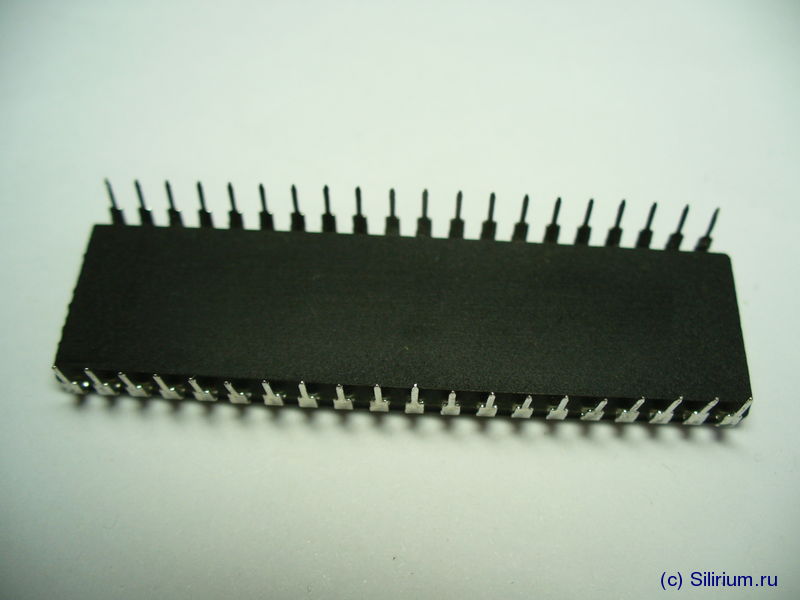

Z84C0010PEC






  Frequency: 10 MHz
  Bus: 10 MHz
  Package: PDIP-40
  Technology: ?
  Year: mfg. 2003

Top

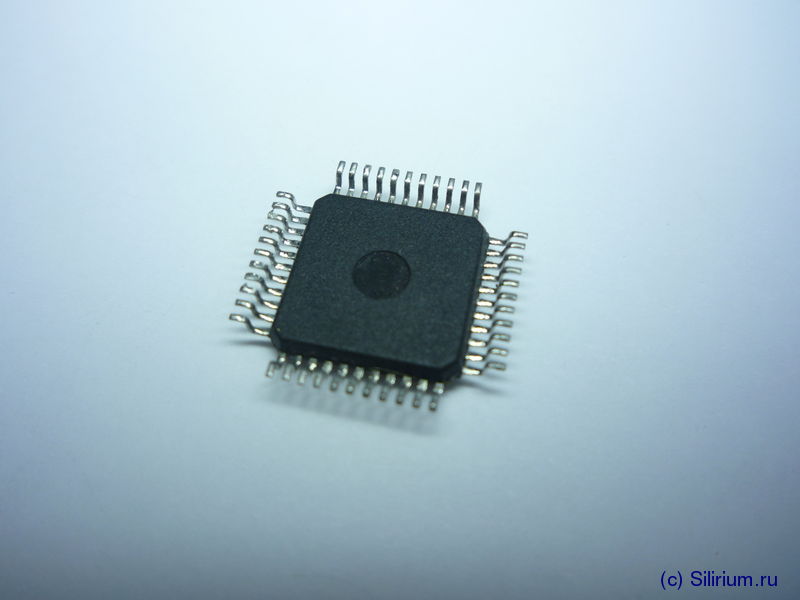

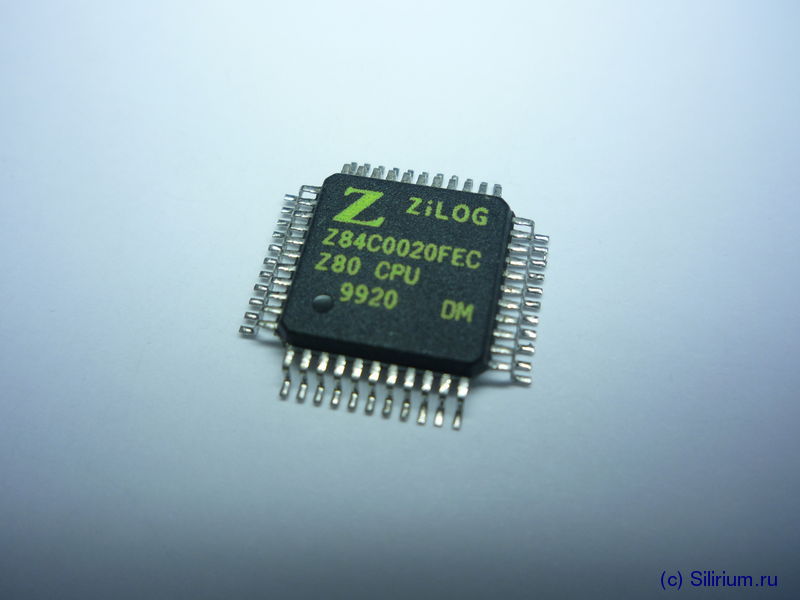

Z84C0020FEC






  Frequency: 20 MHz
  Bus: 20 MHz
  Package: PQFP-44
  Technology: CMOS
  Year: mfg. 1999

Top

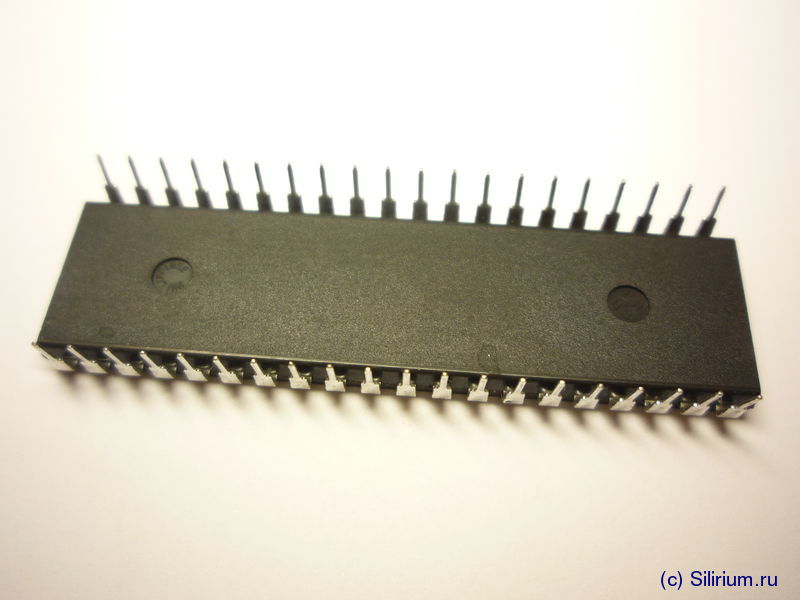

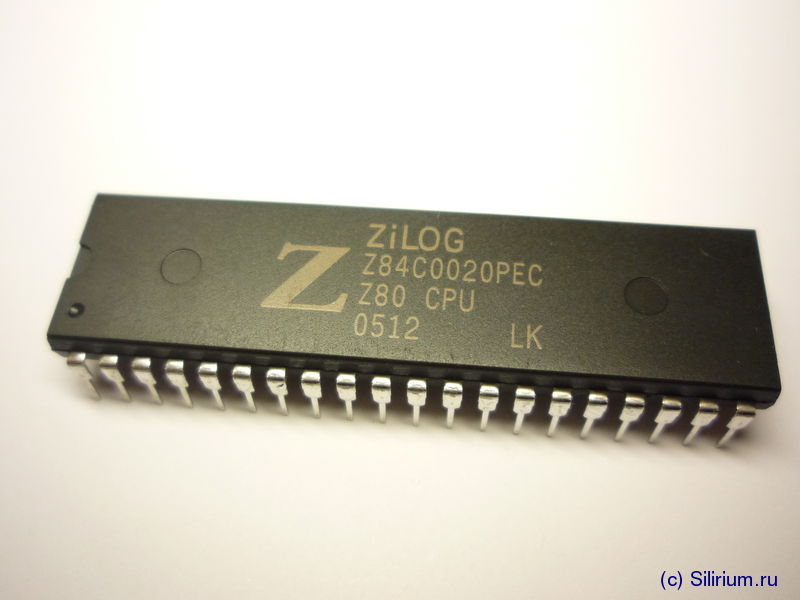

Z84C0020PEC






  Frequency: 20 MHz
  Bus: 20 MHz
  Package: PDIP-40
  Technology: ?
  Year: mfg. 2005

Top

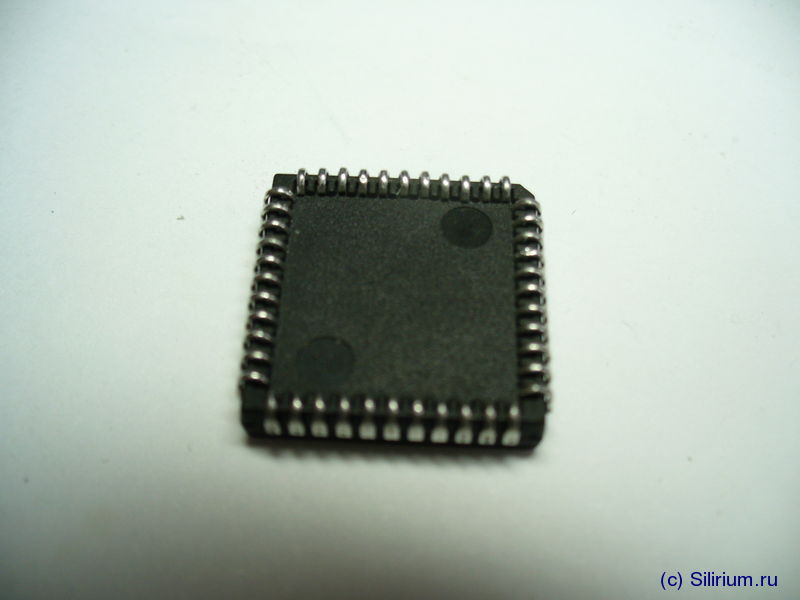

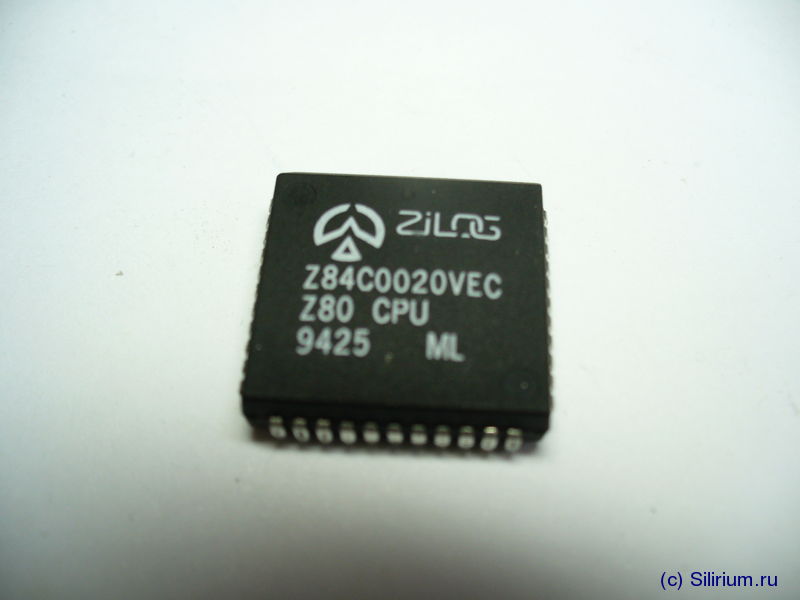

Z84C0020VEC






  Frequency: 20 MHz
  Bus: 20 MHz
  Package: PLCC-44
  Technology: ?
  Year: mfg. 1994

Top
