USSR/Russia 1839 Series
1839 Series
L1839VM1 pink (Л1839ВМ1) [Angstrem]
KL1839VM1 (КЛ1839ВМ1) [Angstrem]
KL1839VV1 (КЛ1839ВВ1) [Angstrem]
KL1839VT1 (КЛ1839ВТ1) [Angstrem]
1839 Series
|
1839 Series are VAX-11/750 compatible chip set. For example 1839 series have been used for Soviet "Electronica-32" DEC VAX-11/750 compatible computer. 1839VM1 (1839ВМ1) - 32-bit microprocessing unit 1839VV1 (1839ВВ1) - 32-BUS/QBUS interface adapter 1839VT1 (1839ВТ1) - DRAM controller |
1839 Series
L1839VM1 pink (Л1839ВМ1) [Angstrem]KL1839VM1 (КЛ1839ВМ1) [Angstrem]KL1839VV1 (КЛ1839ВВ1) [Angstrem]KL1839VT1 (КЛ1839ВТ1) [Angstrem]1839 Series

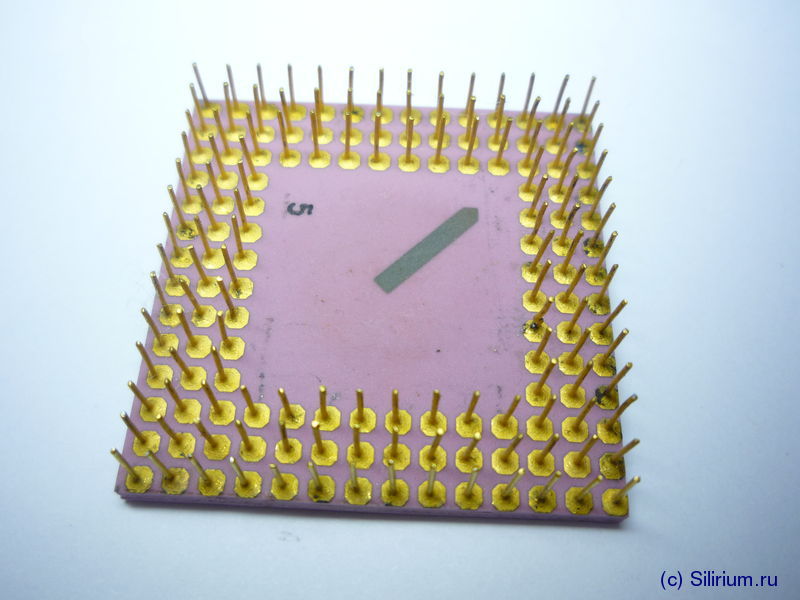

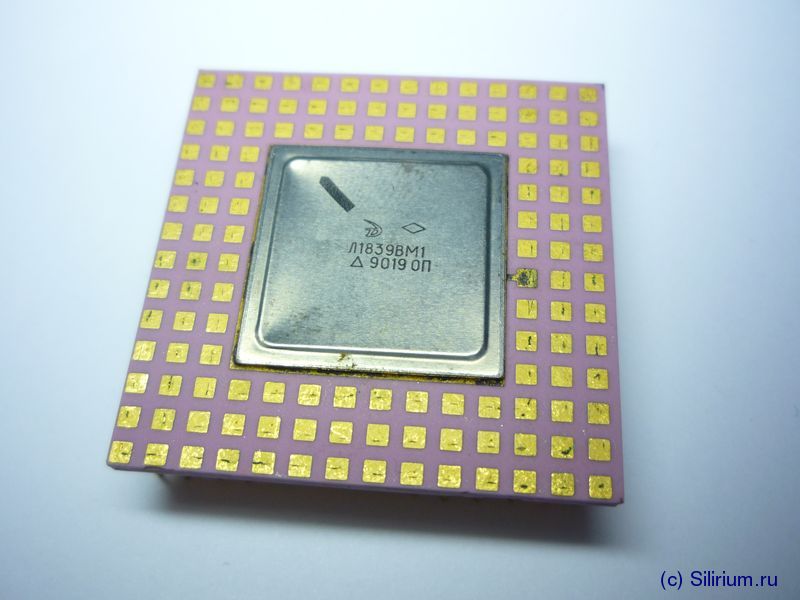

| L1839VM1 pink (Л1839ВМ1)
Central processing unit |
||
 |
 |
Manufacturer: Angstrem
Frequency: 10 MHz Bus: 10 MHz Intstruction set: VAX-11 Intstruction count: 304 Virtual address bus width: 32-bit Physical address bus width: 24-bit General purpoces registers.: 16 Package: CPGA-132 Technology: 3mcm CMOS Year: 1990 Top |

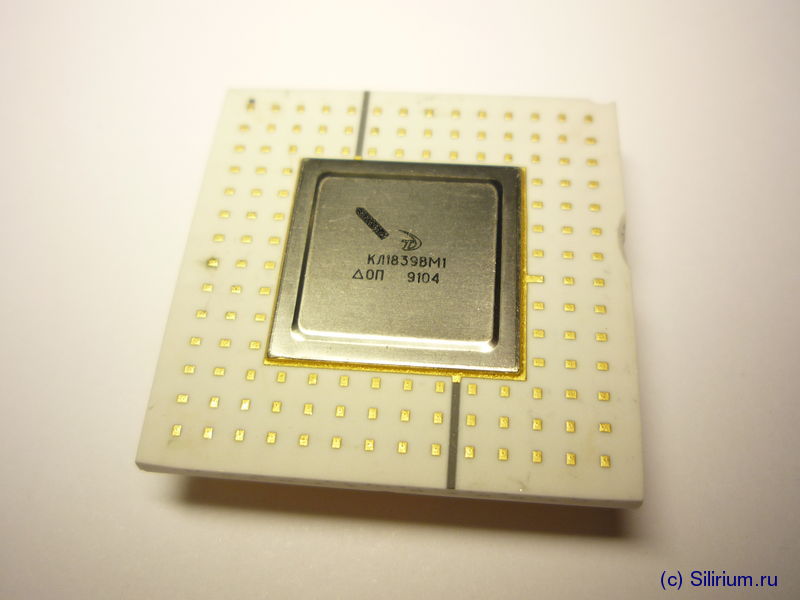

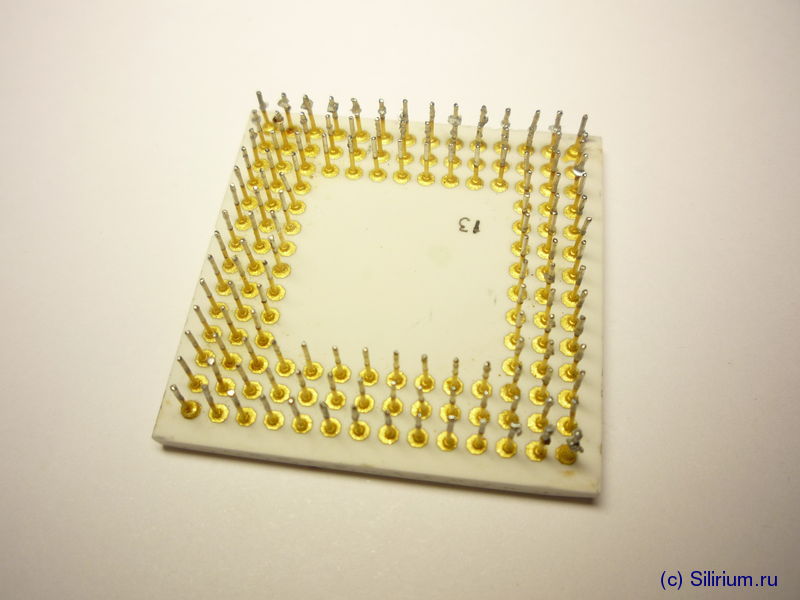

| KL1839VM1 (КЛ1839ВМ1)
Central processing unit |
||
 |
 |
Manufacturer: Angstrem
Frequency: 10 MHz Bus: 10 MHz Intstruction set: VAX-11 Intstruction count: 304 Virtual address bus width: 32-bit Physical address bus width: 24-bit General purpoces registers.: 16 Package: CPGA-132 Technology: 3mcm CMOS Year: 1991 Top |

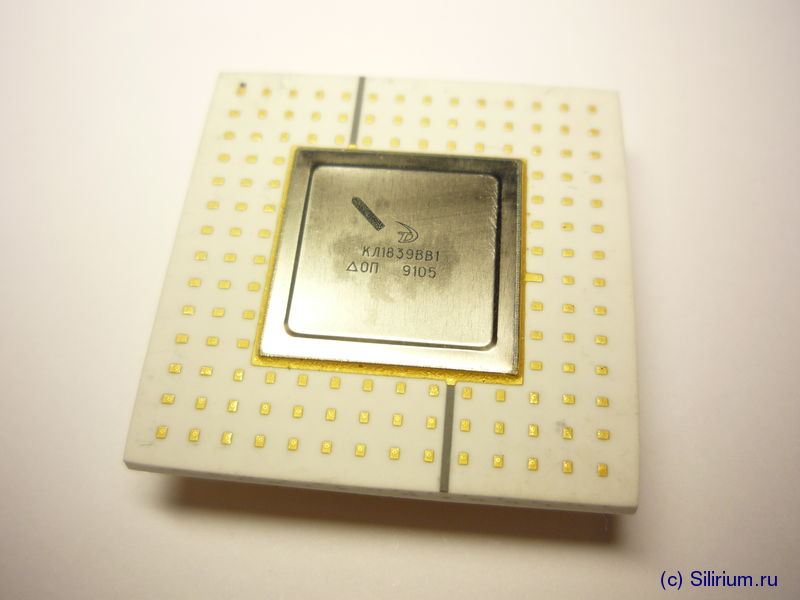

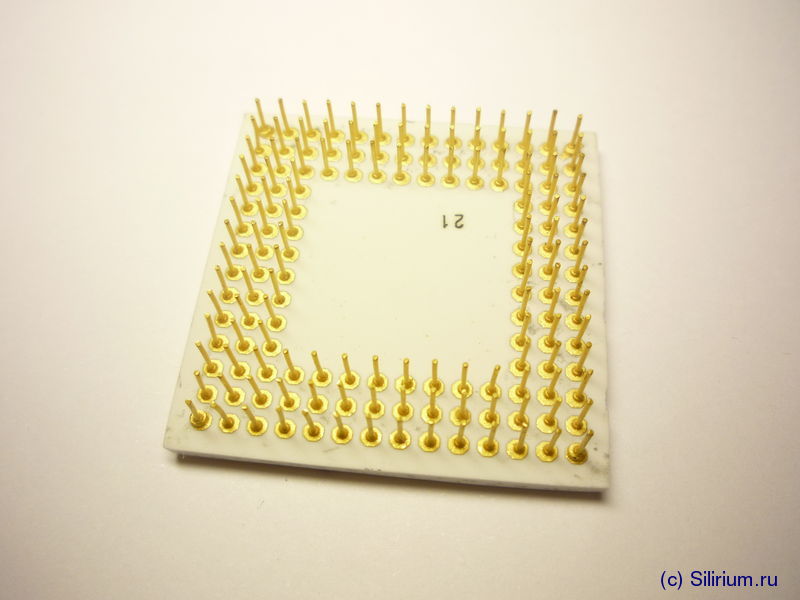

| KL1839VV1 (КЛ1839ВВ1)
32-BUS/QBUS interface adapter |
||
 |
 |
Manufacturer: Angstrem
Frequency: 10 MHz 32-BUS data width: 8/16/32 bit 32-BUS address width: 24 bit QBUS data width: 8/16 bit QBUS address width: 18 bit Interrupts: 18+4 Package: CPGA-132 Technology: 3mcm CMOS Year: 1991 Top |

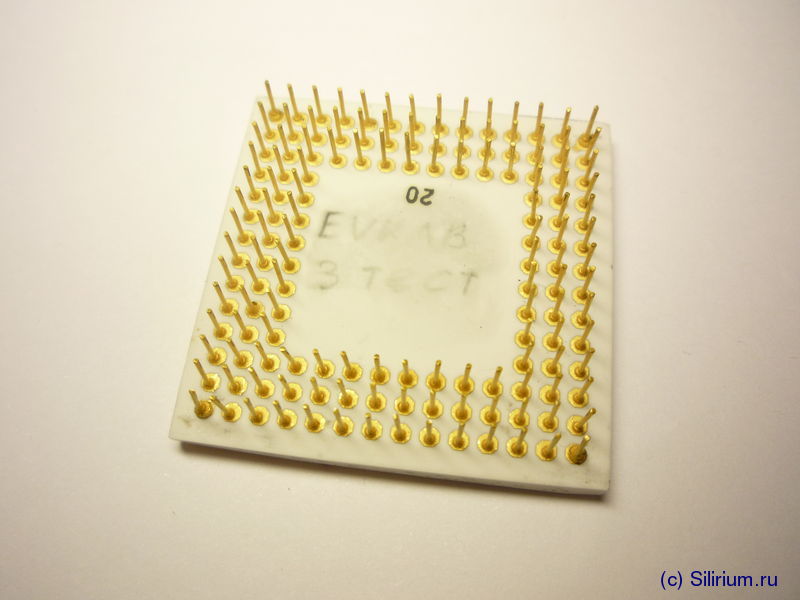

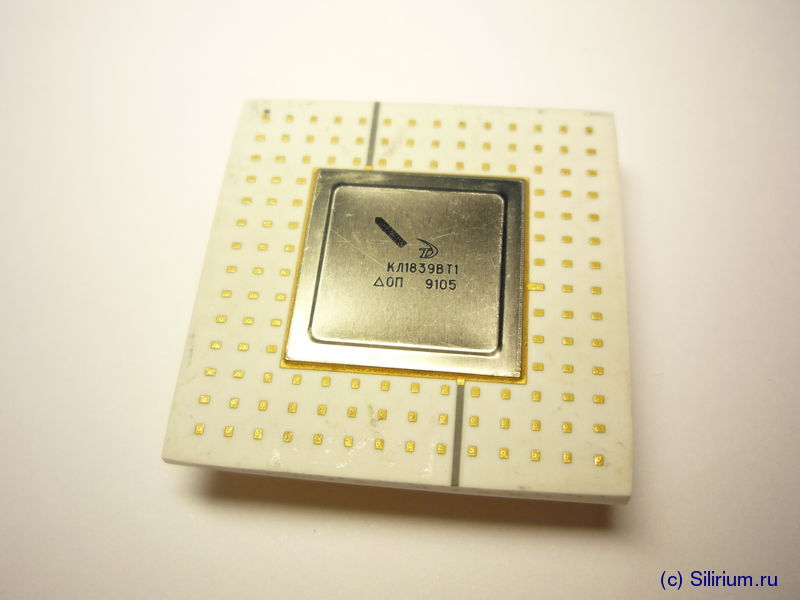

| KL1839VT1 (КЛ1839ВТ1)
DRAM controller |
||
 |
 |
Manufacturer: Angstrem
Package: CPGA-132 Technology: 3mcm CMOS Year: 1991 Top |
