DEC CVAX Family
DEC CVAX (DC341) CPU / CFPA (DC513) FPU
CVAX CPU (DC341) 21-24674-14 (KA42-A)
CFPA FPU (DC513) 21-26604-03
DEC CVAX-60 (DC580) CPU / CFPA-60 (DC581) FPU
CVAX-60 CPU (DC580) 21-24674-17 (KA41-D)
CFPA-60 FPU (DC581) 21-26604-07
DEC CVAX (DC341) CPU / CFPA (DC513) FPU
DEC CVAX-60 (DC580) CPU / CFPA-60 (DC581) FPU
DEC CVAX (DC341) CPU / CFPA (DC513) FPU
CVAX CPU (DC341) 21-24674-14 (KA42-A)CFPA FPU (DC513) 21-26604-03DEC CVAX-60 (DC580) CPU / CFPA-60 (DC581) FPU
CVAX-60 CPU (DC580) 21-24674-17 (KA41-D)CFPA-60 FPU (DC581) 21-26604-07DEC CVAX (DC341) CPU / CFPA (DC513) FPU

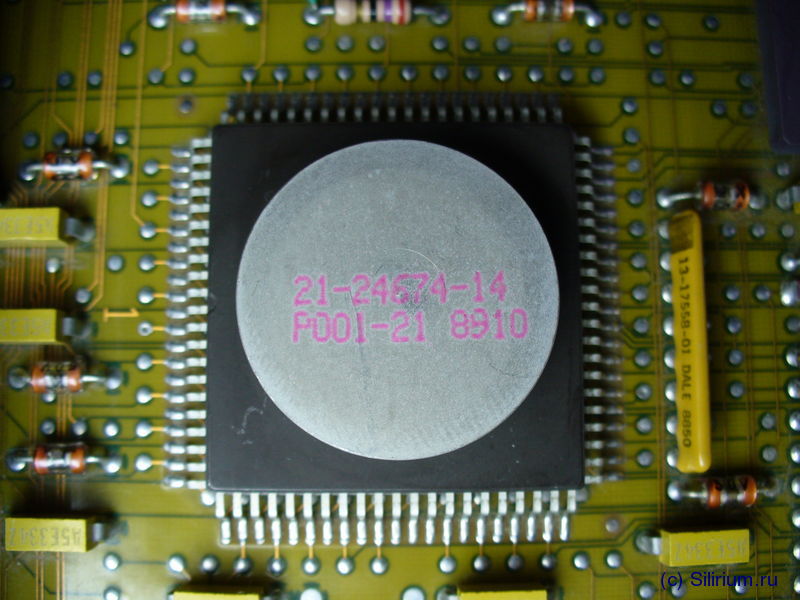

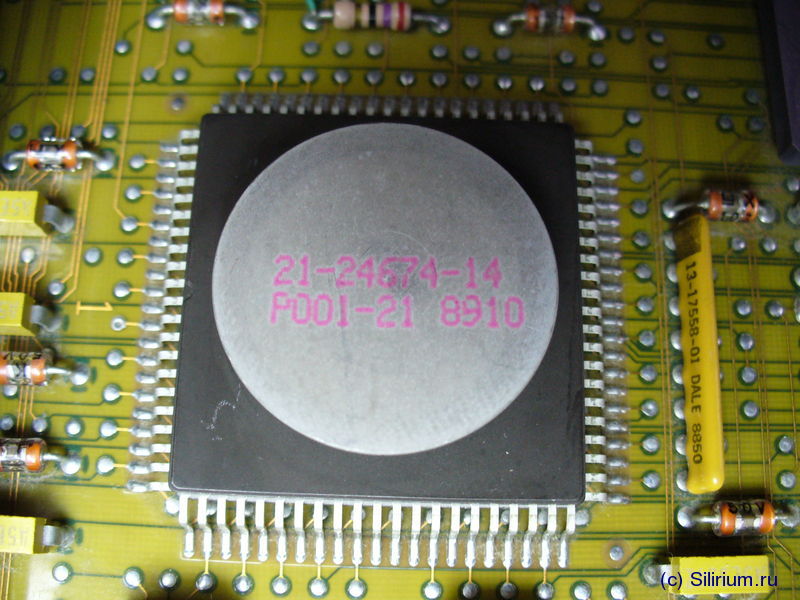

| CVAX CPU (DC341) 21-24674-14 (KA42-A)
CPU used in VaxStation 3100 Model 30 |
||
 |
 |
Frequency: 11 MHz (Tc=90ns)
Transistors: 180 000 Codename: CVAX (DC341) L1 Cache: 1 KB L2 Cache: External ID: 21-24674-14 Package: CQFP-84 Technology: 2 mcm Year: 1989 Top |

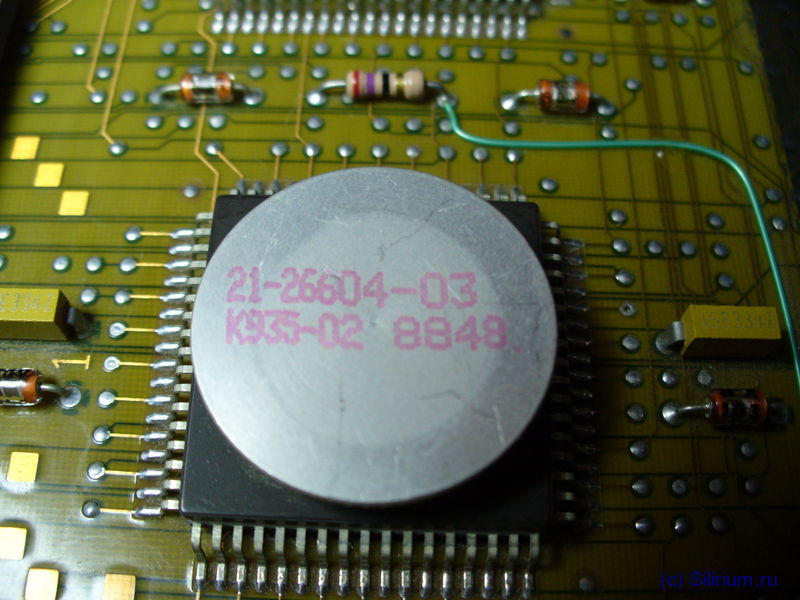

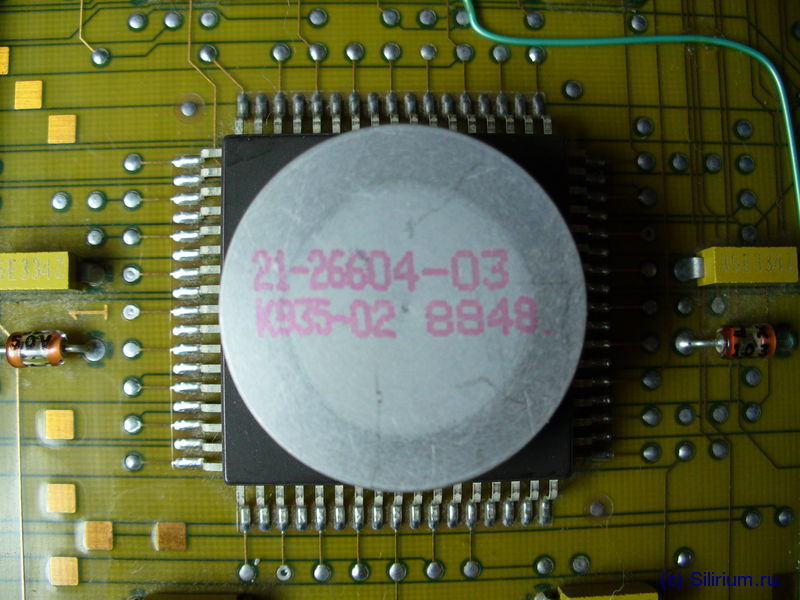

| CFPA FPU (DC513) 21-26604-03
FPU used in VaxStation 3100 Model 30 |
||
 |
 |
Frequency: 11 MHz (Tc=90ns)
Transistors: 34 000 Codename: CFPA (DC513) L1 Cache: - L2 Cache: - ID: 21-26604-03 Package: CQFP-68 Technology: 2 mcm Year: 1988 Top |
DEC CVAX-60 (DC580) CPU / CFPA-60 (DC581) FPU

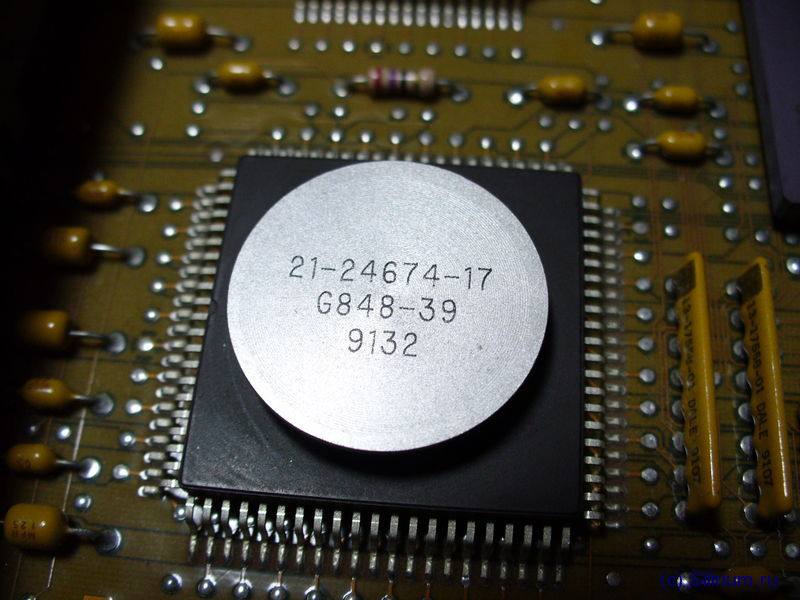

| CVAX-60 CPU (DC580) 21-24674-17 (KA41-D)

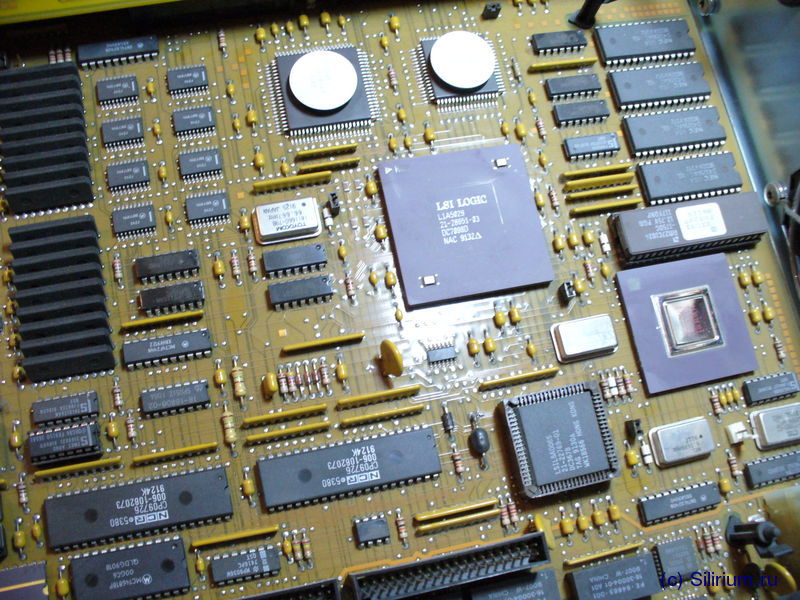

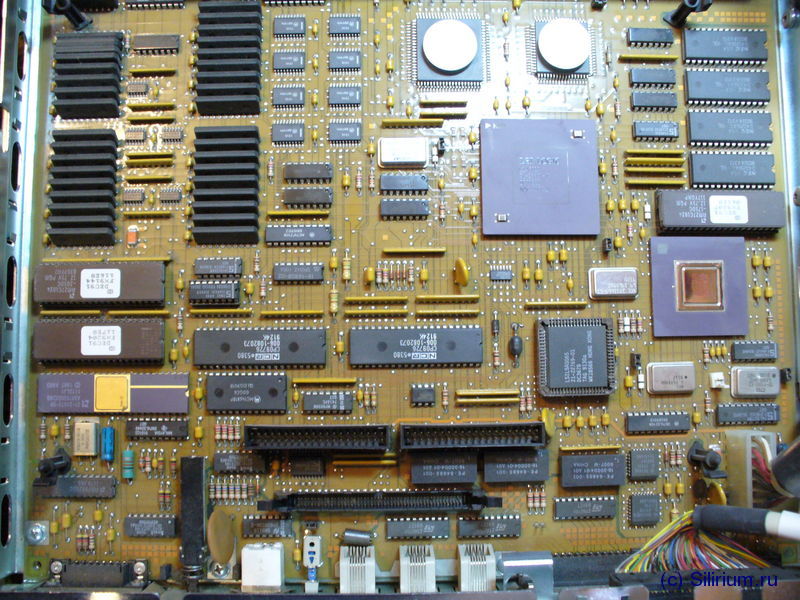

CPU used in MicroVax 3100 Model 10e (DV-31DTA-A) |
||
 |
 |
Frequency: 16 MHz
Transistors: 180 000 Codename: CVAX-60 (DC580) L1 Cache: 1 KB L2 Cache: External ID: 21-24674-17 Package: CQFP-84 Technology: 1.5 mcm Year: 1991 Top |

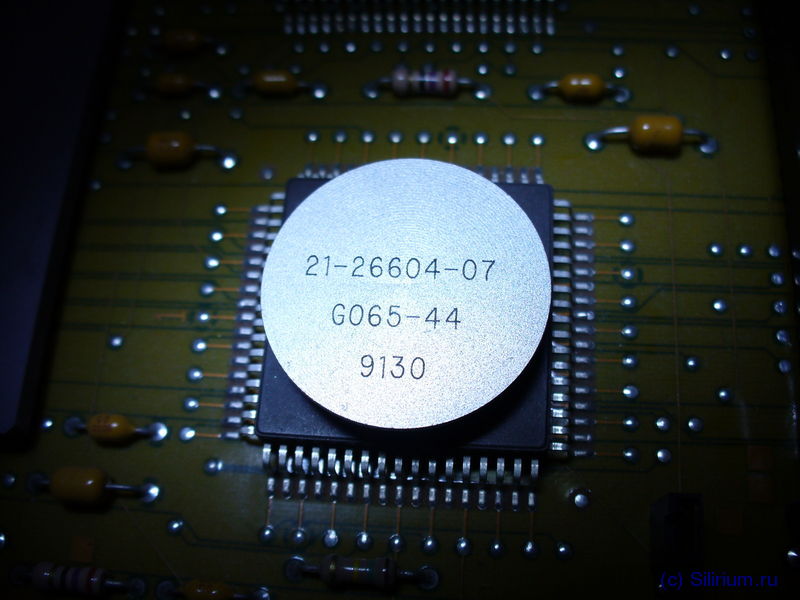

| CFPA-60 FPU (DC581) 21-26604-07
FPU used in MicroVax 3100 Model 10e (DV-31DTA-A) |
||
 |
 |
Frequency: 16 MHz
Transistors: 60 000 Codename: CFPA-60 (DC581) L1 Cache: - L2 Cache: - ID: 21-26604-07 Package: CQFP-68 Technology: 1.5 mcm Year: 1991 Top |
