| The 145 Series ICs have been designed mainly for building a electronic consumer appliances, like consumer computing devices or control devices |
145 Family
K145IA1 (К145ИА1) [Svetlana]KR145IP7 (КР145ИП7) [Deviz]K145IP11 (К145ИП11) [ElectronPribor]K145IP11A (К145ИП11А) [Eldag]K145IP11A (К145ИП11А) [Eldag] Diff PrintK145IP15 (К145ИП15) [Angstrem]K145IP15A (К145ИП15А) [Eldag]KR145IP16B (КР145ИП16Б) [Deviz]KR145IK1807 (КР145ИК1807) [Kvantor]K145IK6 (К145ИК6) [Svetlana]145 Family

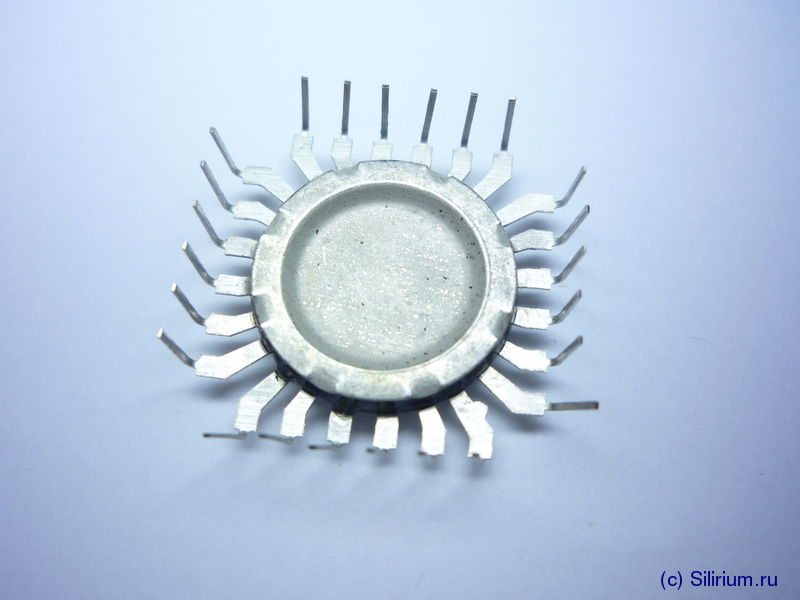

| K145IA1 (К145ИА1)
ALU |
||
 |
 |
Manufacturer: Svetlana
Analog: - Package: Round 24-pin Technology: ? Year: 1993 Top |

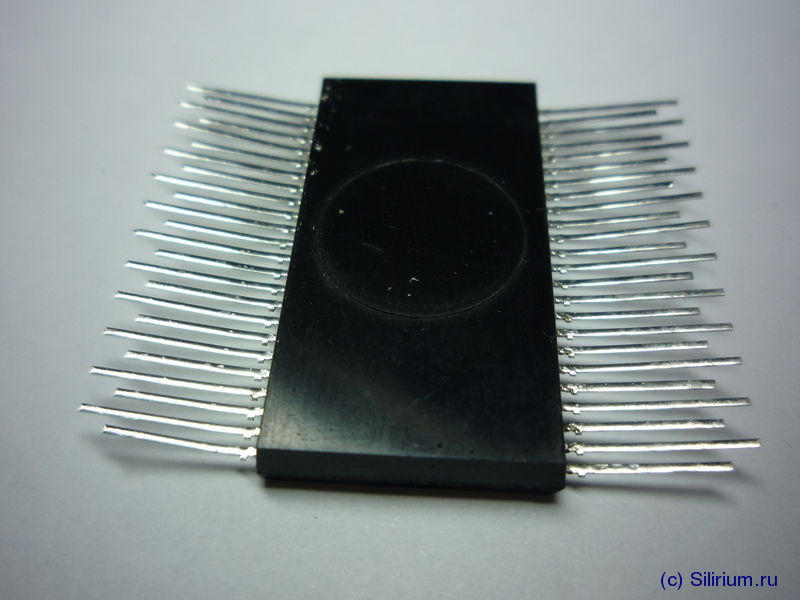

| KR145IP7 (КР145ИП7)
Used as CPU in Soviet 8-bit calculators |
||
 |
 |
Manufacturer: Deviz
T+-: ? T*/: ? Tsqrt: ? Data bus width: 8 bit (?) RAM: ? ROM: ? Package: QUIP-48 Technology: PMOS Year: 1990 Top |

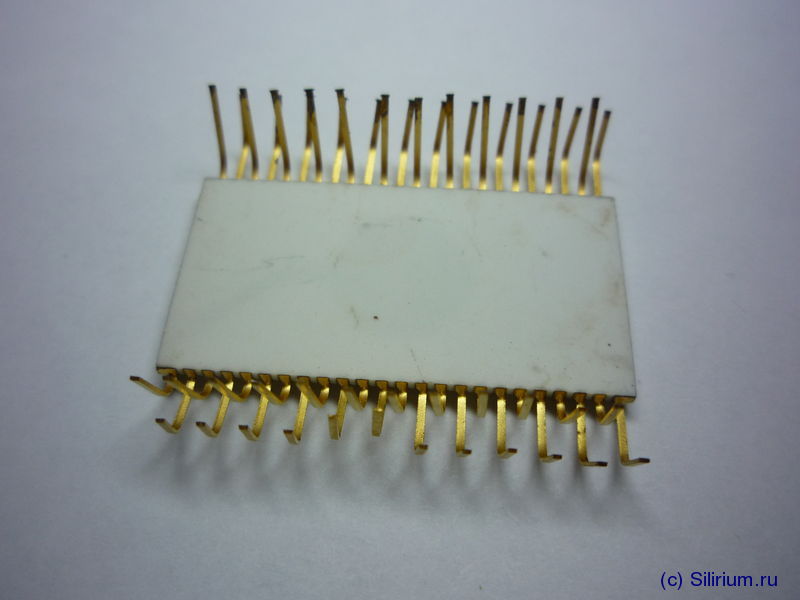

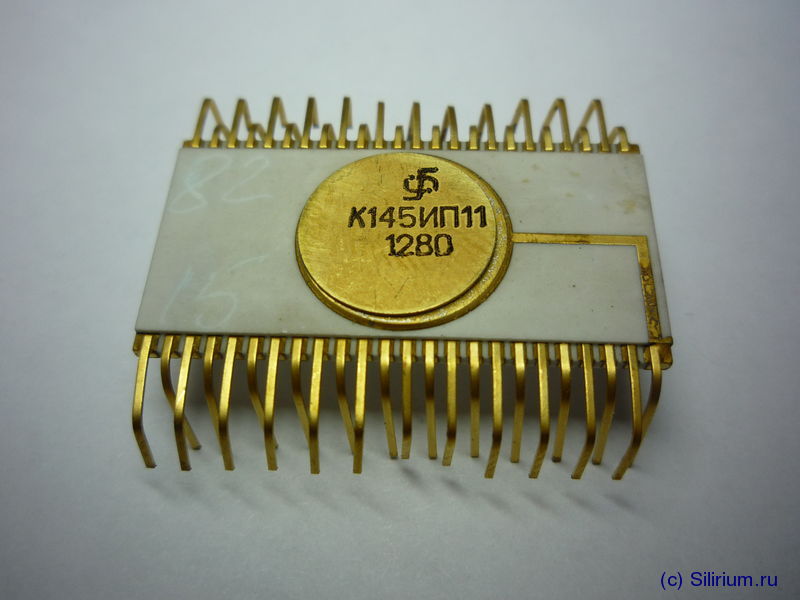

| K145IP11 (К145ИП11)
Used as CPU in Soviet 8-bit calculators |
||
 |
 |
Manufacturer: ElectronPribor
T+-: ? T*/: ? Tsqrt: ? Data bus width: 8 bit (?) RAM: ? ROM: ? Package: QUIC-48 Technology: PMOS Year: 1980 Top |

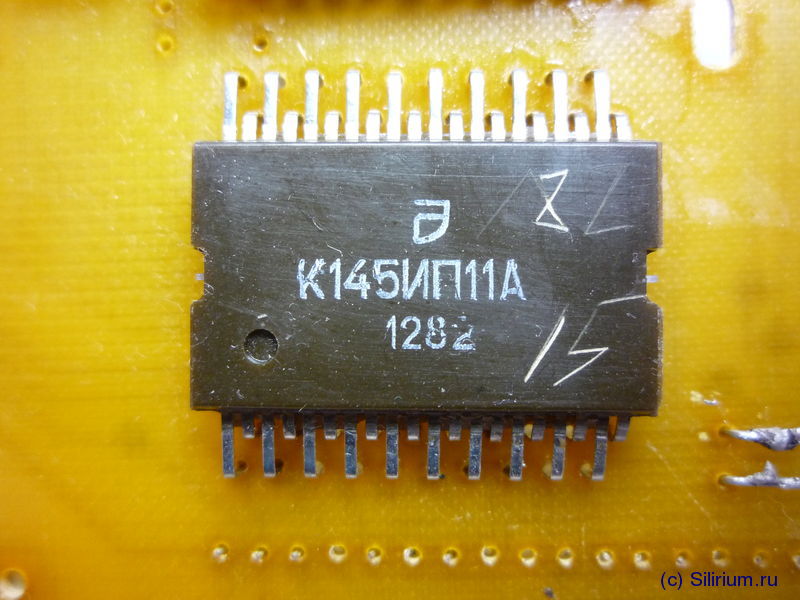

| K145IP11A (К145ИП11А)
Used as CPU in Soviet calculators, like Electronica B3-23 / Electronica MK-23 |
||
 |
|
Manufacturer: El'dag
T+-: 60 ms T*/: 200 ms Tsqrt: 0.5 s Data bus width: 8 bit (?) RAM: 180 bits ROM: 4 KB Package: QUIP-40 Technology: ? Year: 1982 Top |

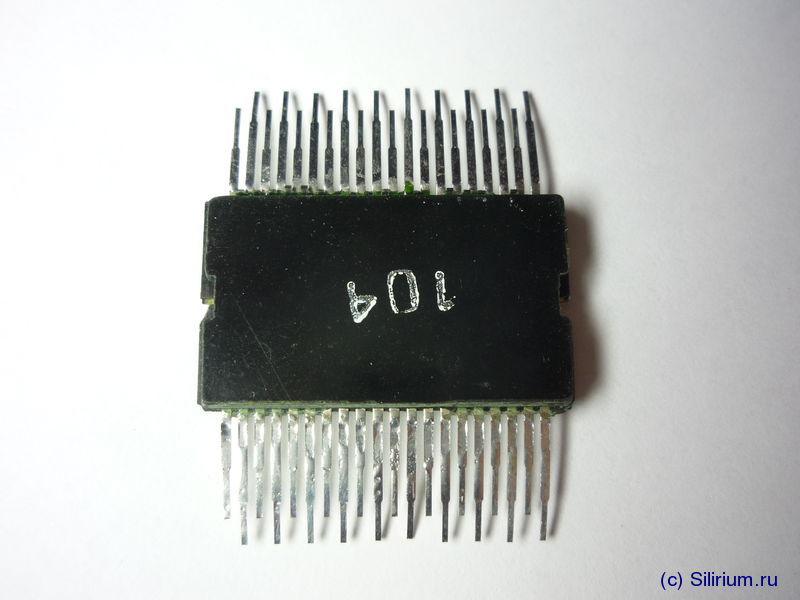

| K145IP11A (К145ИП11А) Diff Print
Used as CPU in Soviet calculators, like Electronica B3-23 / Electronica MK-23 |
||
 |
 |
Manufacturer: El'dag
T+-: 60 ms T*/: 200 ms Tsqrt: 0.5 s Data bus width: 8 bit (?) RAM: 180 bits ROM: 4 KB Package: QUIP-40 Technology: ? Year: 1989 Top |

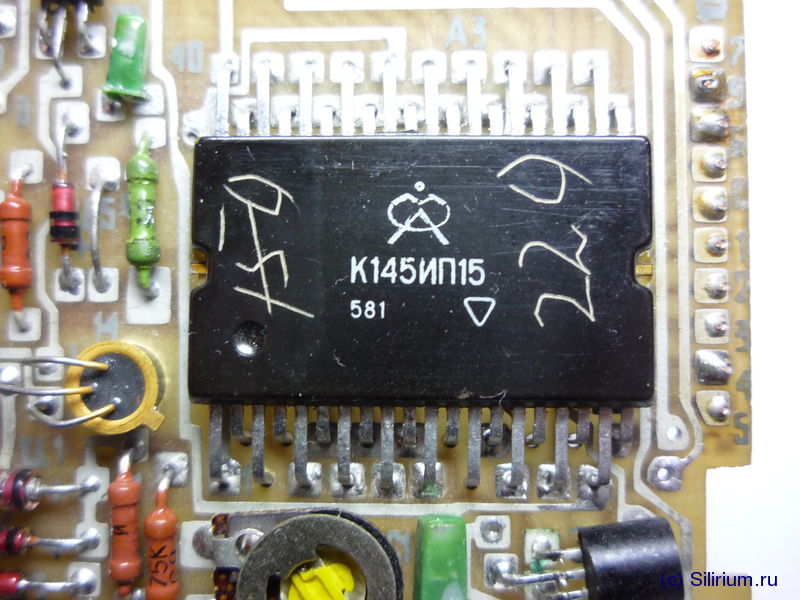

| K145IP15 (К145ИП15)
Used as CPU in Soviet calculators, like Electronica B3-36 / Electronica MK-36 |
||
 |
|
Manufacturer: Angstrem
T+-: ? T*/: ? Tsqrt: ? Data bus width: 8 bit (?) RAM: ? ROM: ? Package: QUIP-40 Technology: PMOS Year: 1985 Top |
| K145IP15A (К145ИП15А)
Used as CPU in Soviet calculators |
||
 |
 |
Manufacturer: El'dag
T+-: ? T*/: ? Tsqrt: ? Data bus width: 8 bit (?) RAM: ? ROM: ? Package: QUIP-40 Technology: ? Year: 1988 Top |

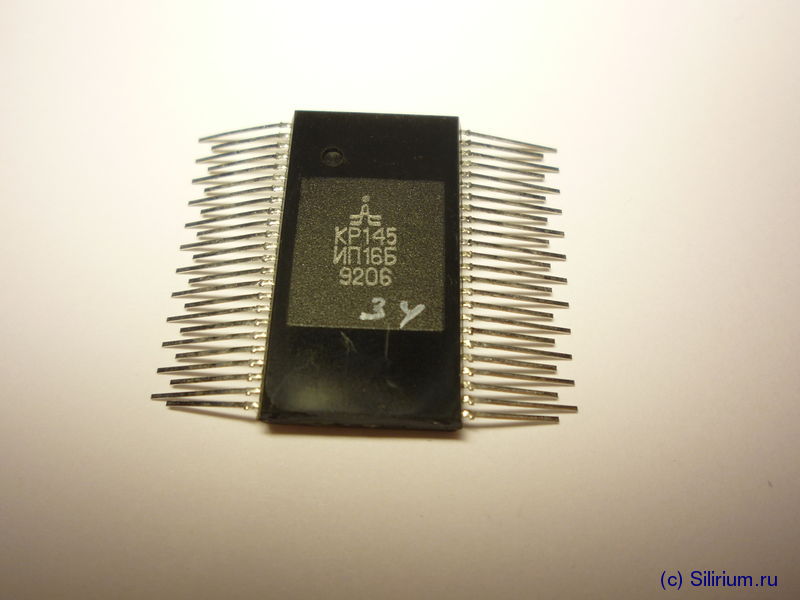

| KR145IP16B (КR145ИП16Б )
Arithmetic unit |
||
 |
 |
Manufacturer: Deviz
T+-: ? T*/: ? Tsqrt: ? Data bus width: 8 bit (?) Package: QUIP-40 Technology: ? Year: 1992 Top |

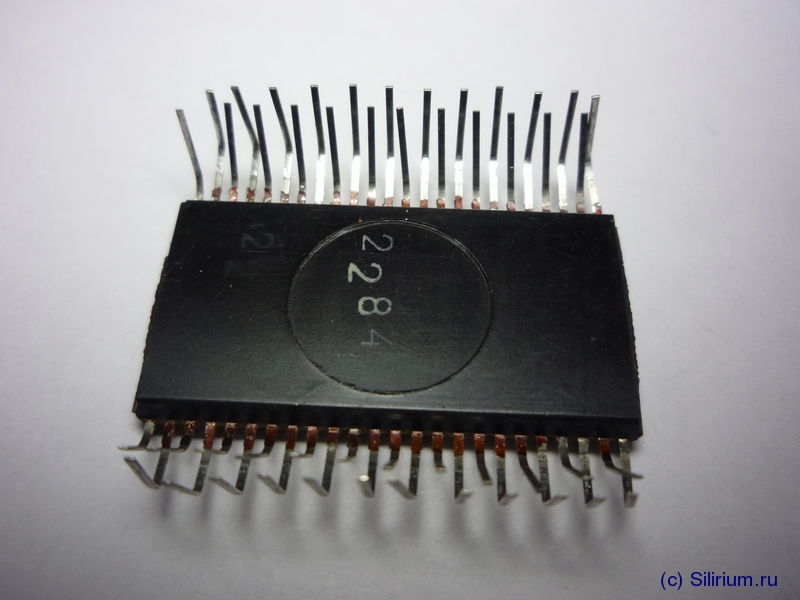

| KR145IK1807 (КР145ИК1807)
Control unit for general purposes, like consumer electronics or devices for automation of techological processes |
||
 |
 |
Manufacturer: Kvantor
Package: QUIP-48 Technology: PMOS Year: 1987 Top |

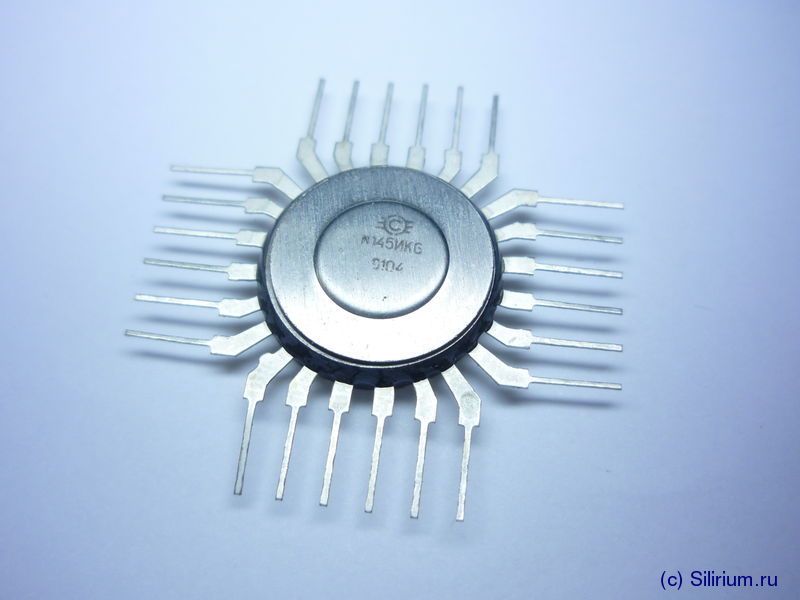

| K145IK6 (К145ИК6)
Arithmetic unit |
||
 |
 |
Manufacturer: Svetlana
Analog: - Package: Round 24-pin Technology: ? Year: 1991 Top |
