Intel Fakes / Remarked CPUs


Pentium
Pentium 100 A80502-100 FAKE
Pentium 100 A80502100/SY046 remarked as BP80502166/SU072
Remarked as P133 - Pentium 100 A80502100
Remarked as P133 - Pentium 120 A80502120
Pentium 166 A80502166 Fake 'iMPP' marked






Pentium fakes

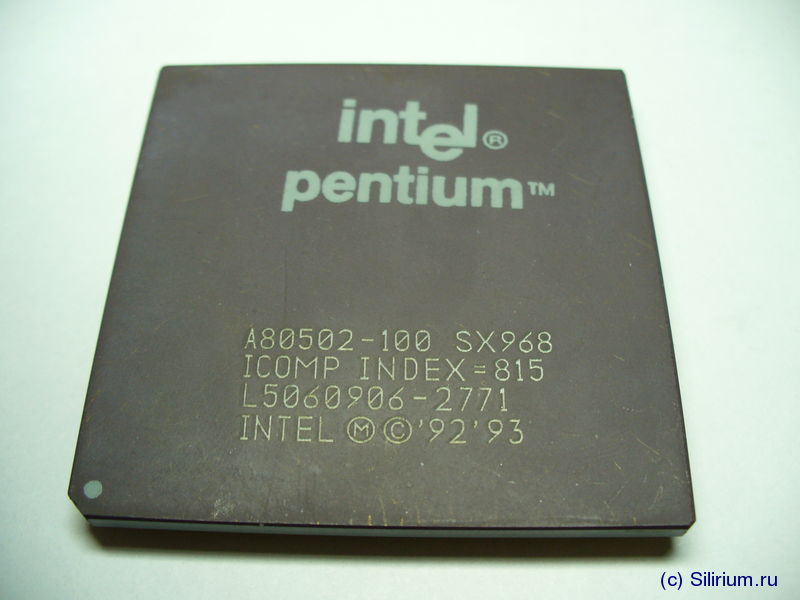

Pentium 100 A80502-100 FAKE
S-Spec - SX968 (A80502-90), but chip marked as A80502-100






  Frequency: ?
  Bus: ?
  Codename: P54
  L1 Cache: 16 KB
  L2 Cache: External
  ID: SX968
  Package: CPGA-296
  Socket: Socket 5/7
  Technology: 0.6 mcm
  Year: 1995

Top

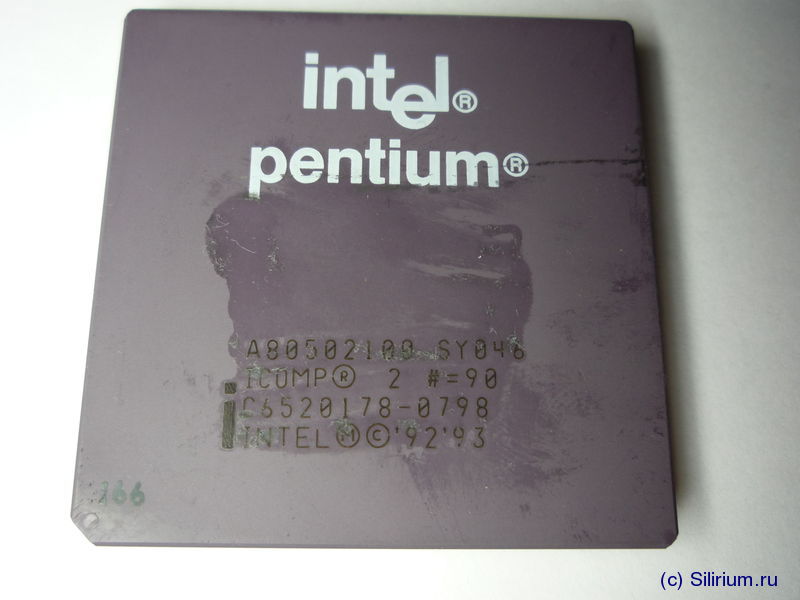

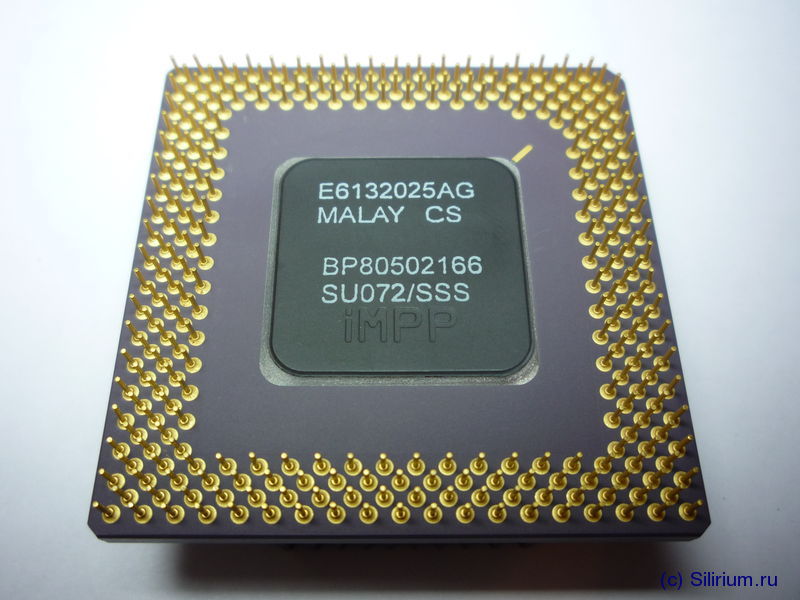

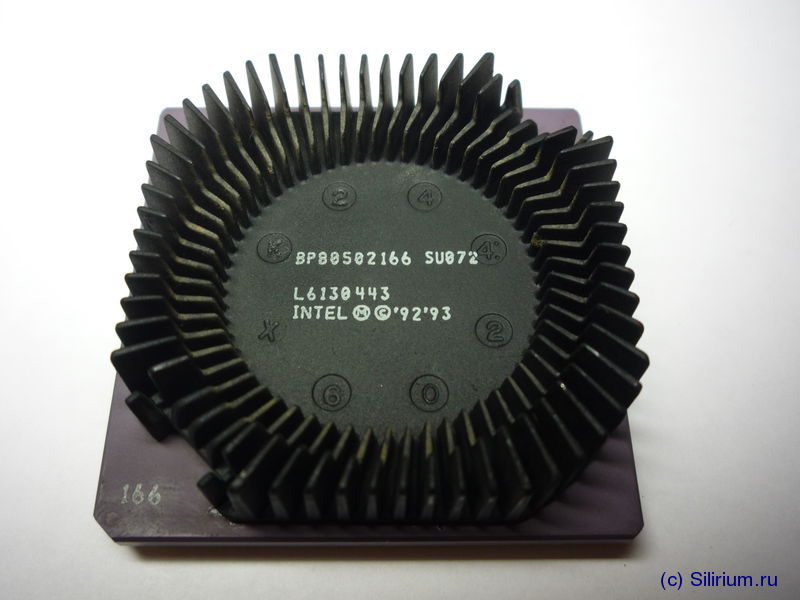

Pentium 100 A80502100/SY046 remarked as BP80502166/SU072 Mobile Pentium 100 (SY046/iMPP) marked as desktop boxed Pentium 166









  Frequency: 100 MHz
  Bus: 66 MHz
  Codename: P54
  L1 Cache: 16 KB
  L2 Cache: External
  ID: SY046
  Package: CPGA-296
  Socket: Socket 5/7
  Technology: 0.6 mcm
  Year: 1996

Top

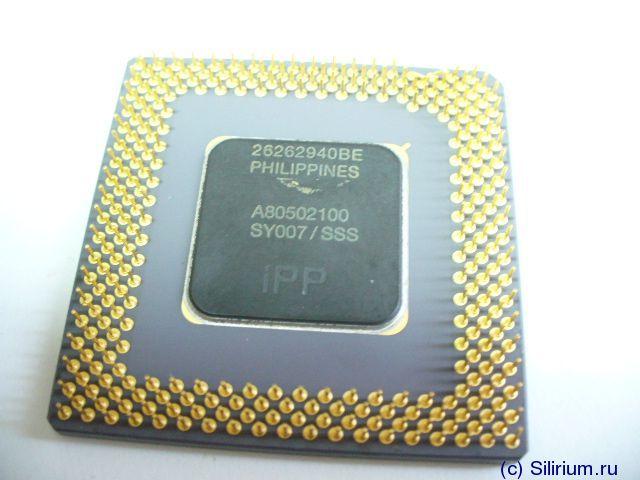

Remarked as P133 - Pentium 100 A80502100






  Frequency: 100 MHz
  Bus: 66 MHz
  Codename: P54
  L1 Cache: 16 KB
  L2 Cache: External
  ID: SY007
  Package: CPGA-296
  Socket: Socket 5/7
  Technology: 0.6 mcm
  Year: 1994

Top

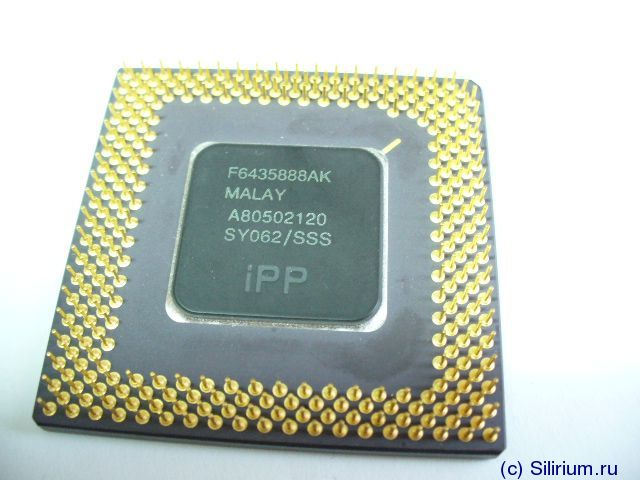

Remarked as P133 - Pentium 120 A80502120






  Frequency: 120 MHz
  Bus: 60 MHz
  Codename: P54CQS
  L1 Cache: 16 KB
  L2 Cache: External
  ID: SY062
  Package: CPGA-296
  Socket: Socket 5/7
  Technology: 0.35 mcm
  Year: 1995

Top

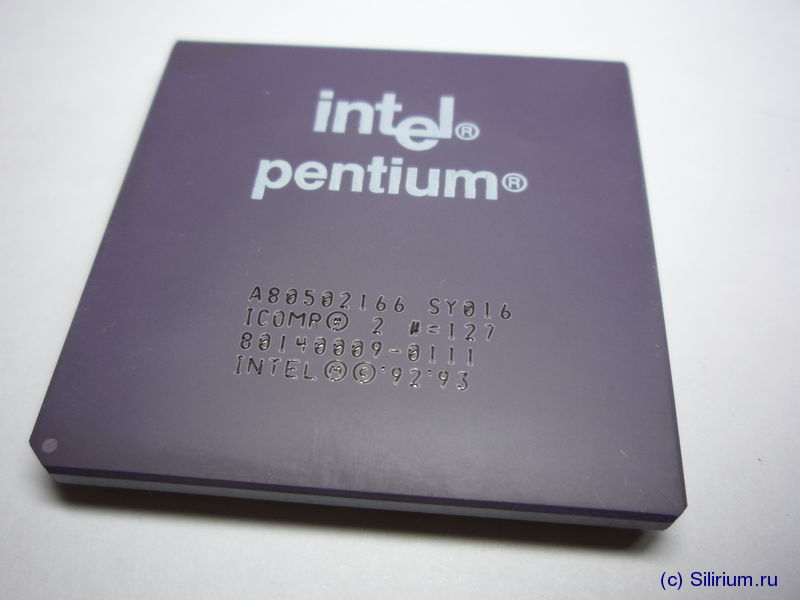

Pentium 166 A80502166 Fake 'iMPP' marked at backside
SY016/VSS at backside means Vcore 3.4-3.6V,
but iMPP-marking means Pentium Mobile w/ 2.9-3.1 Vcore.
In addition, the maximum frequency of Pentium Mobile - 150 MHz .






  Frequency: 166 MHz
  Bus: 66 MHz
  Codename: P54CQS
  L1 Cache: 16 KB
  L2 Cache: External
  ID: SY016
  Package: CPGA-296
  Socket: Socket 7
  Technology: 0.35 mcm
  Year: 1996
