1806 CPU Family

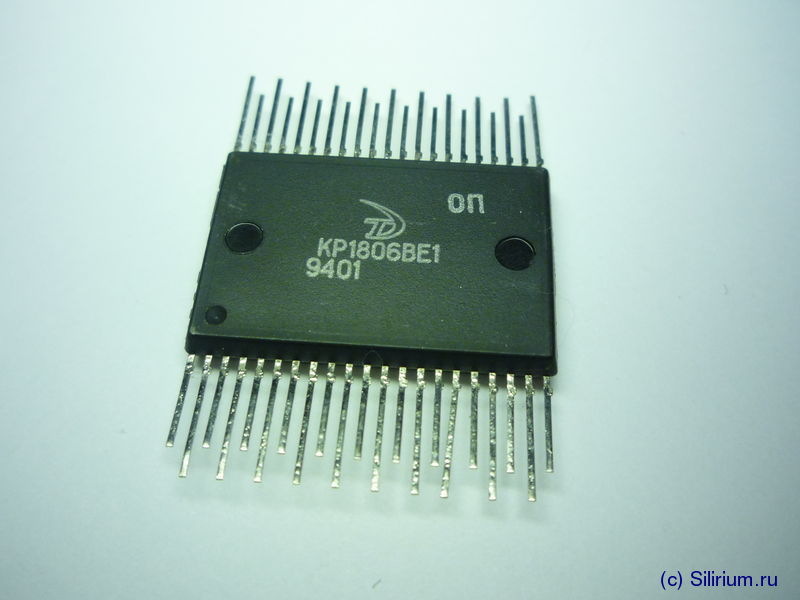

KR1806VE1 (КР1806ВЕ1)
4-bit ROM-less MCU






  Manufacturer: Angstrem Plant
  Frequency: 1 MHz
  RAM: 80 4-bit words
  ROM: -
  Transistors: 10300
  Package: QUIP-42
  Technology: 3 mcm CMOS
  Vcore: 4-6.5 V
  Year: 1994
  Datasheet:
  ussr-KR1806VE1.pdf.zip (606KB)

Top

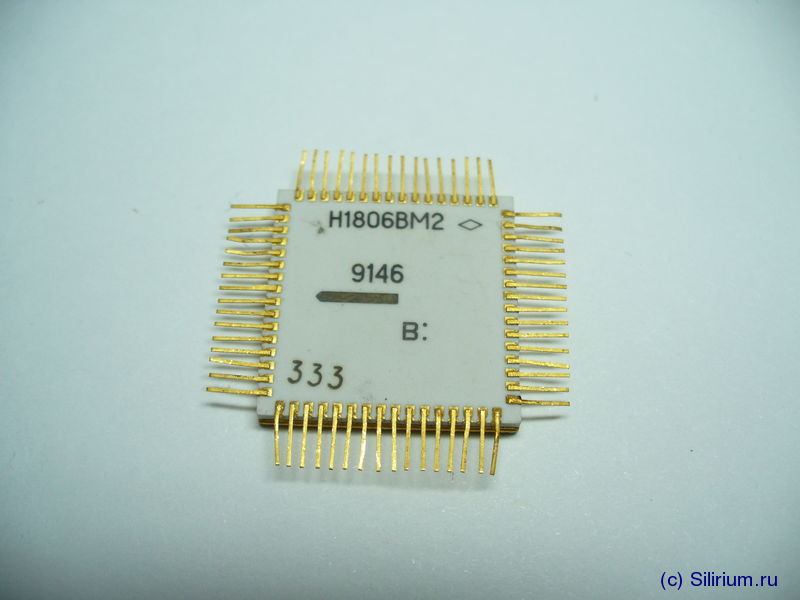

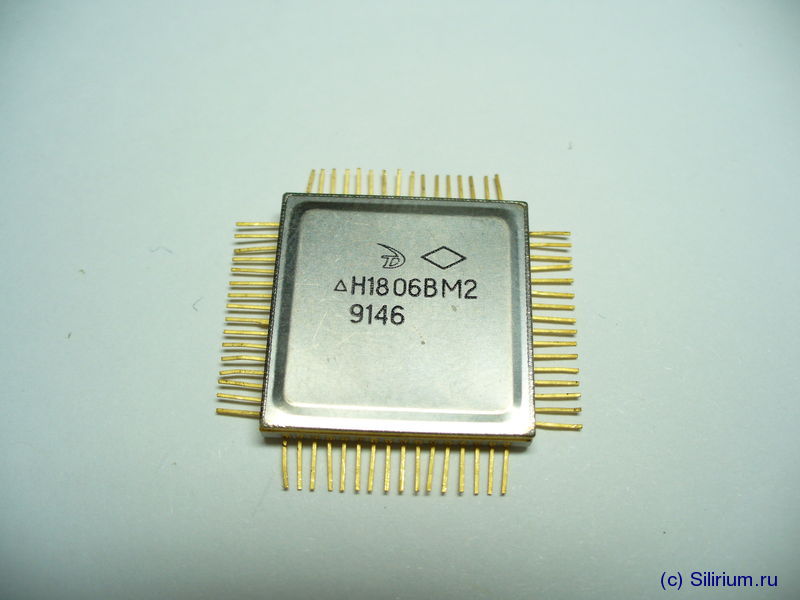

N1806VM2 (Н1806ВМ2)
Same as 1801VM2, but using CMOS technology






  Manufacturer: Angstrem Plant
  Frequency: 5 MHz
  Bus: 5 MHz
  Package: CQFP-64 (Н18.64-1В)
  Technology: CMOS
  Year: 1991
